S15 (Formerly Danfoss Power Solutions)

15 Series units are of axial piston design, utilizing slippered pistons. All 15 Series variable pumps feature trunnion style swashplates with direct displacement control.

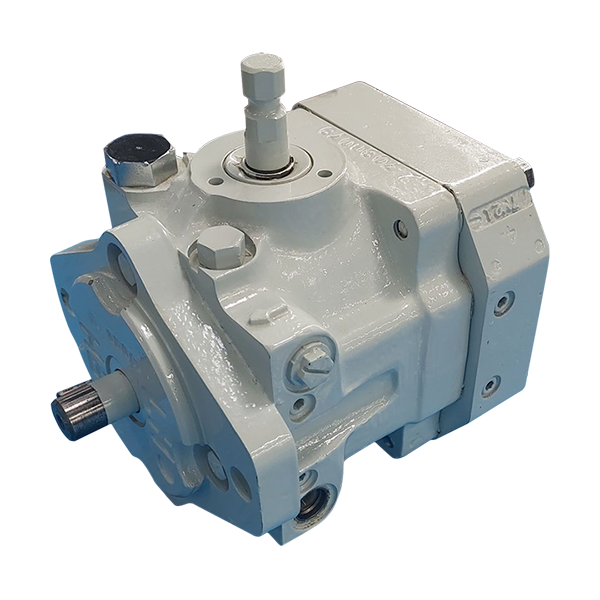

The 15 Series variable displacement pump is designed for machine applications where up to 15 horsepower is required for the propel function, or for auxiliary work functions where the system pressure requirements and the design life can be met within the pump rating. The maximum pump displacement is 0.913 in3/Rev. (15 cc/Rev.).

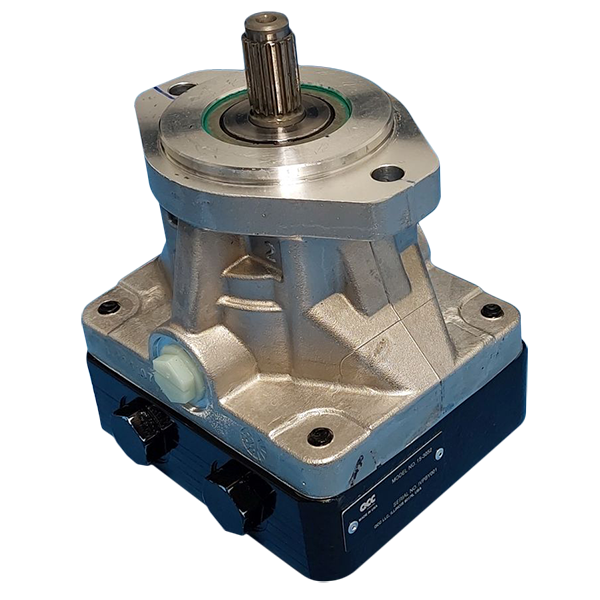

The 15 Series fixed displacement motor is an axial piston unit with a fixed displacement of 0.913 in3/Rev. (15 cc/Rev.). The variable displacement motor has a maximum displacement of 0.913 in3/Rev. (15 cc/Rev.).
