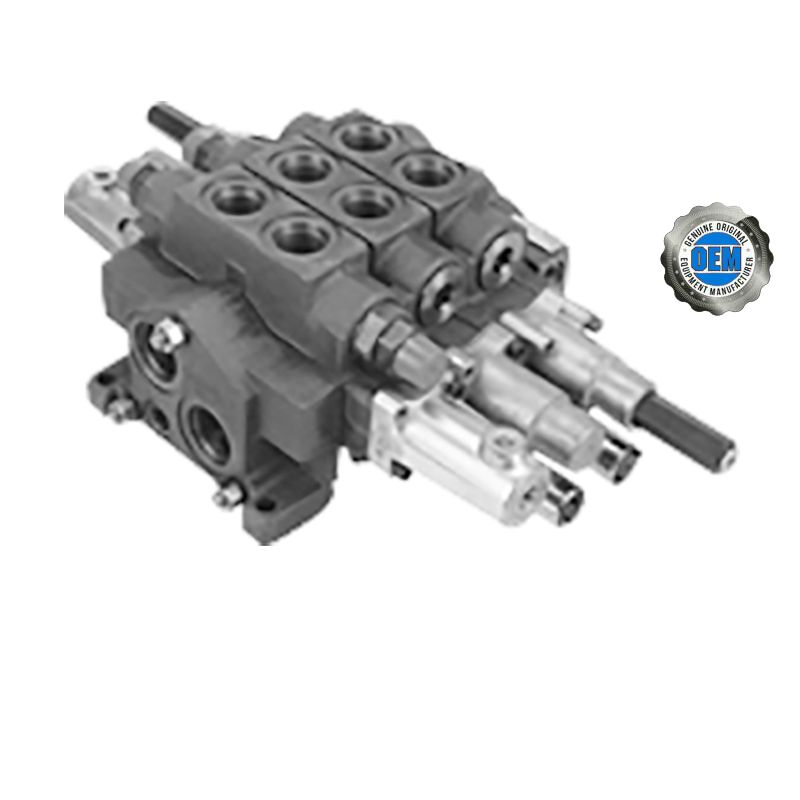

Part Number List for all MP Valves. For price and availability contact sales@qccorp.com or call 708-887-5400 Ext. 2.

SKU 4253051
$0.00
Out of stock
1
Product Details

MP-15 Valves

QCC PN Model Code Bosch PN
2605-038-001 SPOOL-FLOAT R978727578
2605-038-004 SPOOL-FLOW CONTROL R978727579
2605-058-002 SHAFT-ADJUSTING R978727583
2605-058-006 SHAFT-DETENT,PIVOTED R978727585
2605-064-002 POPPET-LOAD CHECK R978727586
2605-065-001 COUPLING-PIVOT,DETENT R978727587
2605-066-002 HOUSING-SHUTTLE,PRIMARY R978727589
2605-066-003 HOUSING-KICKOUT R978727590
2605-067-001 RETAINER-SPRING R978727593
2605-067-007 RETAINER-SHAFT R978727596
2605-067-008 RETAINER R978727597
2605-068-001 SPACER-DETENT R978727598
2605-069-006 TUBE-FLOW CONTROL R978727600
2605-074-001 PISTON-KICKOUT R978727601
2605-566-001 HOUSING-PRIMARY,SUB ASSEMBLY R978727602
2605-566-002 HOUSING-PRIMARY,ASSEMBLY R978727603
2605-566-006 HOUSING-DETENT,ASSEMBLY R978727604
2605-567-002 RETAINER-ASSEMBLY R978727607
2605-574-001 PISTON-ASSEMBLY R978727608
2605-635-003 KIT-SEAL,SPOOL R978727611
2605-635-005 KIT-SEAL,KICKOUT PISTON R978727613
2605-635-015 KIT-DETENT,SPRING CENTERING R978727621

MP-18 Valves

QCC PN Model Code Bosch PN
1602-002-296 VALVE-2 SECTION,ASSEMBLY (6E1780) CAT # R978720759
1602-002-401 VALVE-3 SECTION,ASSEMBLY (114-0049) CAT# R978720833
1602-62-0353 HB01(42,OP)M1(24)QQ0A R978723116
1602-652-324 BODY-FLOAT SECTION,ASSEMBLY R978723624
1602-652-361 BODY-FLOAT SECTION,ASSEMBLY (MD) R978723652
1602-652-366 BODY-FLOAT SECTION,ASSEMBLY R978723657
1602-652-376 BODY-FLOAT SECTION,ASSEMBLY (MD) R978723664
1602-652-744 BODY-LOCKOUT SECT,ASSY (PF) R978723777
1605-61-0039 BODY-INLET SECTION,ASSEMBLY R978725896
1605-62-0041 HB01(C@B,OP)X(12)G(290)G(186)0*B(159) R978725954
1605-62-0138 BODY-STANDARD SECT.,ASSEMBLY R978726045
1605-63-0003 HB05(cr@b)B3eQ2(133)A R978726096
1605-63-0004 HB05(cr@b)B3eG(241)2(133)A R978726097
1605-66-0002 HBL(A)01(159)HG(290)G(152)3A R978726190
1605-66-0003 HBL(B)01(159)HG(269)G(249)3A R978726191
1602-002-066 VALVE-3 SECTION,ASSEMBLY (W/LINKAGE) R978720630
1602-002-165 VALVE-2 SECTION,ASSEMBLY (9T7293) CAT # R978720675
1602-002-214 VALVE-3 SECTION,ASSEMBLY (9T9183) CAT # R978720703
1602-002-557 VALVE-4 SECTION,ASSY & KITS #N/A
1602-002-674 VALVE-4 SECTION,ASSEMBLY (86029085) R978721034
1602-002-696 VALVE-5 SECTION,ASSEMBLY R978721054
1602-002-712 VALVE-1 SECTION,ASSY & KIT R978728777
1602-62-0065 BODY-STANDARD SECT,ASSY (HR) R978722893
1602-62-0093 BODY-STANDARD SECT.,ASSEMBLY R978722921
1602-62-0109 BODY-STANDARD SECT.,ASSEMBLY R978722935
1602-62-0111 BODY-STANDARD SECT.,ASSEMBLY R978722936
1602-62-0112 BODY-STANDARD SECT.,ASSEMBLY R978722937
1602-62-0113 BODY-STANDARD SECT.,ASSEMBLY R978722938
1602-62-0114 BODY-STANDARD SECT,ASSY (S) R978722939
1602-62-0127 BODY-STANDARD SECT.,ASSEMBLY R978722952
1602-62-0128 BODY-STANDARD SECT,ASSY (HR) R978722953
1602-62-0144 BODY-STANDARD SECT.,ASSEMBLY R978722964
1602-62-0153 BODY-STANDARD SECT.,ASSEMBLY R978722968
1602-62-0183 BODY-STANDARD SECT.,ASSEMBLY R978722994
1602-62-0195 BODY-STANDARD SECT.,ASSEMBLY R978723006
1602-62-0196 BODY-STANDARD SECT.,ASSEMBLY R978723007
1602-62-0230 BODY-STANDARD SECTION,ASSEMBLY R978723032
1602-62-0241 BODY-STANDARD SECT.,ASSEMBLY R978723041
1602-62-0294 BODY-STANDARD SECT.,ASSEMBLY R978723092
1602-62-0308 BODY-STANDARD SECTION,ASSEMBLY (MD) R978723095
1602-63-0004 BODY-FLOAT SECTION,ASSEMBLY R978723179
1602-63-0010 BODY-FLOAT SECTION,ASSEMBLY R978723183
1602-643-026 COVER-END SECTION,ASSY (PR) R978723292
1602-643-054 COVER-END SECTION,ASSY (PR) R978723301
1602-643-071 COVER-END SECTION,ASSEMBLY R978723303
1602-65-0077 BODY-MOTOR SECTION,ASSEMBLY R978723378
1602-65-0188 BODY-MOTOR SECTION,ASSEMBLY R978723467
1602-652-116 BODY-INLET SECTION,ASSEMBLY R978723536
1602-652-228 BODY-STANDARD SECT.,ASSEMBLY R978723560
1602-652-248 BODY-STANDARD SECT.,ASSEMBLY R978723574
1602-652-249 BODY-STANDARD SECT.,ASSEMBLY R978723575
1602-652-263 BODY-STANDARD SECT.,ASSEMBLY R978723582
1602-652-265 BODY-STANDARD SECT.,ASSEMBLY R978723583
1602-652-266 BODY-STANDARD SECT.,ASSEMBLY R978723584
1602-652-283 BODY-STANDARD SECT.,ASSEMBLY R978723594
1602-652-309 BODY-FLOAT SECTION,ASSEMBLY R978723611
1602-652-321 BODY-FLOAT SECTION,ASSEMBLY R978723621
1602-652-323 BODY-FLOAT SECTION,ASSEMBLY R978723623
1602-652-364 BODY-FLOAT SECTION,ASSEMBLY R978723655
1602-652-372 BODY-FLOAT SECTION,ASSEMBLY R978723660
1602-652-557 BODY-MOTOR SECTION,ASSEMBLY R978723707
1602-652-716 BODY-LOCKOUT SECT.,ASSEMBLY R978723752
1602-652-717 BODY-LOCKOUT SECT.,ASSEMBLY R978723753
1602-652-718 BODY-LOCKOUT SECT,ASSY+PARTS R978723754
1602-652-727 BODY-LOCKOUT SECTION,ASSY(S) R978723761
1602-652-735 BODY-LOCKOUT SECT.,ASSEMBLY R978723768
1602-652-736 BODY-LOCKOUT SECT.,ASSEMBLY R978723769
1602-652-742 BODY-LOCKOUT SECT,ASSY (S) R978723775
1602-652-816 BODY-STANDARD SECT.,ASSEMBLY R978723789
1602-652-817 BODY-STANDARD SECTION,ASSEMBLY (MD) R978723790
1602-652-857 BODY-STANDARD SECT.,ASSEMBLY R978723827
1602-652-875 BODY-STANDARD SECT.,ASSEMBLY R978723845
1602-652-898 BODY-STANDARD SECT.,ASSEMBLY R978723862
1602-66-0010 LBPLM05(114,OP)L(12)ZZ0A R978723870
1602-73-0006 BODY-FLOAT SECTION,ASSEMBLY R978723885
1602-743-072 COVER-INLET WEDGE SECT.,ASSY #N/A
1602-76-0002 BODY-FLOAT SECTION,ASSEMBLY R978723889
1604-62-0111 BODY-STANDARD SECTION,ASSEMBLY R978725148
1604-64-0004 BODY-REGEN SECTION,ASSEMBLY (MD) R978725198
1604-65-0029 BODY-MOTOR SECTION,ASSY (S) #N/A
1605-001-007 VALVE-2 SECTION,ASSEMBLY (CAT #185-5911) R978725262
1605-001-018 VALVE-3 SECTION,ASSEMBLY (CAT #179-8290) R978725273
1605-001-023 VALVE-4 SECTION,ASSEMBLY CAT# (121-0934) R978725278
1605-001-032 VALVE-2 SECTION,ASSEMBLY (CAT #185-5906) R978725283
1605-001-034 VALVE-4 SECTION,ASSEMBLY (CAT #180-8592) R978725285
1605-001-047 VALVE-2 SECTION,ASSEMBLY (CAT# 200-7827) R978725296
1605-001-048 VALVE-3 SECTION,ASSEMBLY (CAT #200-7828) R978725297
1605-001-050 VALVE-5 SECTION,ASSEMBLY (201-0666) CAT# R978725299
1605-001-078 VALVE-2 SECTION,ASSEMBLY (CAT #222-3621) R978725324
1605-001-100 VALVE-3 SECTION, ASSEMBLY R978725346
1605-001-105 VALVE-4 SECTION,ASSEMBLY CAT# (209-6764) R978725351
1605-001-106 VALVE-3 SECTION,ASSEMBLY CAT# (209-6765) R978725352
1605-001-123 VALVE-7 SECTION,ASSEMBLY R987180626
1605-001-130 VALVE-4 SECTION,ASSEMBLY (CAT #246-4208) R978725372
1605-001-143 VALVE-2 SECTION,ASSY & KITS (52097409) R978725385
1605-001-144 VALVE-3 SECTION,ASSY & KITS (52097391) R978725386
1605-001-146 VALVE-2 SECTION,ASSY & KITS (52097383) R978725388
1605-001-149 VALVE-1 SECTION,ASSEMBLY (52315934) R978725391
1605-001-174 VALVE-4 SECTION, ASSEMBLY 1605-001-174 R978728772
1605-001-178 VALVE-2 SECTION,ASSEMBLY (CAT #222-3621) R978728761
1605-61-0002 BODY-INLET SECTION,ASSEMBLY R978725860
1605-61-0005 BODY-INLET SECTION, ASSEMBLY #N/A
1605-61-0008 BODY-INLET SECTION,ASSEMBLY R978725865
1605-61-0013 P(207) R978725870
1605-61-0018 BODY-INLET SECTION,ASSEMBLY R978725875
1605-61-0026 BODY-INLET SECTION,ASSEMBLY R978725883
1605-61-0027 P(180) R978725884
1605-61-0028 BODY-INLET SECTION,ASSEMBLY R978725885
1605-61-0044 BODY-INLET SECTION,ASSEMBLY R978725901
1605-61-0050 BODY-INLET SECTION,ASSEMBLY R978725904
1605-61-0061 BODY-INLET,ASSEMBLY #N/A
1605-61-0062 BODY-INLET SECTION,ASSEMBLY R978725916
1605-62-0006 BODY-STANDARD SECTION,ASSEMBLY R978725921
1605-62-0008 BODY-STANDARD SECTION,ASSEMBLY R978725923
1605-62-0011 BODY-STANDARD SECTION,ASSEMBLY (HR) R978725926
1605-62-0012 BODY-STANDARD SECTION,ASSEMBLY (HR) R978725927
1605-62-0020 HB01M1(24)QQ2(9.5)A R978725934
1605-62-0025 BODY-STANDARD SECTION,ASSEMBLY #N/A
1605-62-0030 BODY-STANDARD SECTION,ASSEMBLY R978725943
1605-62-0031 BODY-STANDARD SECTION,ASSEMBLY R978725944
1605-62-0034 BODY-STANDARD SECTION,ASSEMBLY R978725947
1605-62-0039 HB16HA(228)A(228)0A R978725952
1605-62-0040 HB01(159)HA(276)A(283)3A R978725953
1605-62-0043 HB01(XX,A&B-TREST)AG(269)A(249)3A R978725956
1605-62-0074 HBP01(91)AG(241)G(241)0A R978725984
1605-62-0080 HB01(OP)HQQ0A R978725989
1605-62-0092 HB01(XX,A&B-Tres)H*G(269)A(248)3*A R978726000
1605-62-0105 HB01(OP)AZe2(133)A R978726013
1605-62-0106 HB01(OP)AZZ2(57)A R978726014
1605-62-0107 HB01(OP)AG(345)G(345)2(133)A R978726015
1605-62-0117 HB01(113)AG(242)Q0A R978726025
1605-62-0125 HBP01(OP)HQG(280)0B(250) #N/A
1605-62-0126 HB01HQG(280)0A #N/A
1605-62-0127 HB01(91)HG(280)Q0A R978726034
1605-62-0128 HB01(57)HZZ0A #N/A
1605-62-0129 HB01(57)L(12)G(280)G(280)0A R978726036
1605-62-0136 BODY-STANDARD SECT.,ASSEMBLY R978726043
1605-62-0137 BODY-STANDARD SECT.,ASSEMBLY R978726044
1605-62-0139 BODY-STANDARD SECT.,ASSEMBLY R978726046
1605-62-0144 HB01(OP)HEQ0A R978726050
1605-62-0151 BODY-STANDARD, ASSEMBLY #N/A
1605-62-0173 BODY-STANDARD SECTION,ASSEMBLY (S) R978726076
1605-62-0175 BODY-STANDARD SECTION,ASSEMBLY (S) R978726078
1605-62-0176 BODY-STANDARD SECT,ASSY (S) R978726079
1605-62-0196 BODY-STANDARD SECT ASSY(S)1605-62-0196 R978728764
1605-62-0199 BODY-STANDARD SECT ASSY (S) 1605-62-0199 R978728765
1605-62-0200 BODY-STANDARD ASSY HR BOOM 1605-62-0200 R978728766
1605-63-0002 BODY-FLOAT SECTION,ASSEMBLY (HR) R978726095
1605-63-0014 HB05(166,B-TRES,C@B,OP)H*EG(348)3A R978726107
1605-63-0015 HB01(145,OP)B3EQ3A R978726108
1605-63-0016 HB01(145,OP)B3EG(262)3A R978726109
1605-63-0017 HB05(68A,95B,OP)B3G(241)G(241)0A R978726110
1605-63-0019 BODY-FLOAT SECTION,ASSEMBLY (MD) R978726112
1605-63-0021 BODY-FLOAT SECTION,ASSEMBLY (MD) R978726114
1605-63-0022 BODY-FLOAT SECTION,ASSEMBLY (MD) R978726115
1605-64-0004 HB10(OP)HG(114)G(249)0*A R978726120
1605-65-0044 BODY-MOTOR, ASSEMBLY #N/A
1605-66-0001 HBL(A,C-B)01(80,OP)AG(262)Q0A R978726189

MP-22 Valves

QCC PN Model Code Bosch PN
1603-51-0008 CG(207) R978724209
1603-543-007 COVER-END SECTION, ASSEMBLY R978724312
1603-652-215 BODY-STANDARD SECT,ASSY (S) R978724665
1603-652-226 BODY-STANDARD SECT,ASSY (S) R978724672
1603-652-228 BODY-STANDARD ASSEMBLY (HR) R978724674
1603-652-237 BODY-STANDARD SECTION,ASSEMBLY (HR) #N/A
1603-652-403 BODY-REGEN SECTION, ASSY (HR) R978724714
1603-652-405 BODY-REGEN SECTION,ASSY (HR) R987182882
1603-652-406 BODY-REGEN SECTION,ASSY (HR) #N/A
1603-652-503 BODY-MOTOR SECTION, ASSY (HR) R978724720
1603-652-508 BODY-MOTOR SECTION,ASSY (S) R978724723
1603-652-517 BODY-MOTOR SECTION,ASSY (HR) R978724726

MP Valve Kits

QCC PN Model Code Bosch PN
1602-635-026 KIT-SEAL,FLOW CONTROL R978723188
1602-635-034 KIT-SEAL & STUD (6 SECT STK) R978723191
1602-635-052 KIT-DETENT,HOUSING R978723205
1602-635-068 KIT-STANDARD,POSITIONER R978723219
1602-635-074 KIT-DETENT "J" R978723224
1602-635-107 KIT-SPOOL
1602-635-109 KIT-DETENT,CENTERING SPRING R978723254
1602-635-118 KIT-HOUSING,DETENT R978723259
1602-635-140 KIT-SEAL,SECTION ASSEMBLIES R978723279
1602-635-141 KIT-SEAL,SECTION (1602-56-0007) R978723280
1602-635-150 KIT-SPOOL LOCK,ASSY R978723288
1603-635-005 KIT-SEAL & BOLT (2 SECT STK) R978724576
1603-635-045 KIT-SECTION,STEER PRIORITY R978724605
1604-635-004 KIT-SECT.,EXC.BOOM,SWG,E-STK R978725178
1604-635-005 KIT-SECTION,BOOM R978725179
1604-635-016 KIT-SEAL & SHIM (3 SECT STK) R978725182
1605-635-001 KIT-SEAL (P.O. CHECK) R978726116
2605-635-005 KIT-SEAL, K/O PISTON R978727613
2605-635-015 KIT-DETENT,SPRING CENTERING R978727621
1601-566-007 HOUSING-ANTI CAV,ASSEMBLY R978720527
1602-566-065 HOUSING-ACTUATOR,ASSEMBLY R987180628
1604-566-003 HOUSING-PRIMARY,SUB ASSEMBLY R978725042
1602-538-036 SPOOL-COMPENSATOR,ASSEMBLY R978722120
1602-538-044 SPOOL-COMPENSATOR,ASSEMBLY R978722127
1602-558-002 SHAFT-DETENT,ASSEMBLY R978722725
1602-566-017 HOUSING-DETENT K/O,ASSEMBLY R978722747
1602-566-029 HOUSING-CENTERING SPG.,ASSY R978722753
1602-566-072 HOUSING-ACTUATOR,ASSEMBLY R978722766
1602-566-085 HOUSING-SOLENOID,ASSEMBLY R978722770
1602-566-086 HOUSING-SOLENOID,ASSEMBLY R978722771
1602-566-109 HOUSING-DETENT K/O,ASSEMBLY R978722794
1602-566-132 HOUSING-PRESS REGULATOR,ASSY R978722813
1602-571-022 SEAT-SHUTTLE PLUG,ASSEMBLY R978722829
1602-666-066 HOUSING-MAG DETENT,ASSEMBLY R978723880
1603-566-008 HOUSING-PRIMARY,ASSEMBLY R987054180
1603-566-010 HOUSING-PRIMARY,ASSEMBLY R978724466
1603-566-012 HOUSING-RELIEF D/S,ASSEMBLY R978724467
1603-566-019 HOUSING-PRIMARY,ASSEMBLY R978724474
1603-571-001 SEAT-SHUTTLE PLUG,ASSEMBLY R978724489
1604-566-001 HOUSING-PRIMARY,SUB ASSEMBLY R978725040
1604-566-017 HOUSING-PRIMARY,ASSEMBLY R978725055
1604-566-018 HOUSING-PRIMARY,ASSEMBLY R978725056
1604-571-002 SEAT-SHUTTLE PLUG,ASSEMBLY R978725065
1604-571-005 SEAT-SHUTTLE PLUG,ASSEMBLY R978725067
1689-330-005 RELIEF-VALVE,ASSEMBLY (DA) R978726414
1690-330-005 RELIEF-VALVE,ASSEMBLY R978726420
1696-380-005 RELIEF-VALVE,ASSEMBLY R978726490
1697-030-005 RELIEF/ANTI CAV,ASSEMBLY R978726496
1697-040-005 RELIEF/ANTI CAV,ASSEMBLY R978726498
1697-200-005 RELIEF/ANTI CAV,ASSEMBLY R978726531
1697-320-005 RELIEF/ANTI CAV,ASSEMBLY R978726559
1697-330-005 RELIEF/ANTI CAV,ASSEMBLY R978726563
1697-380-005 RELIEF/ANTI CAV,ASSEMBLY R978726575
1697-420-005 RELIEF/ANTI CAV,ASSEMBLY R978726584
1697-450-005 RELIEF/ANTI CAV,ASSEMBLY R978726594
2605-566-006 HOUSING-DETENT,ASSEMBLY R978727604
Save this product for later
